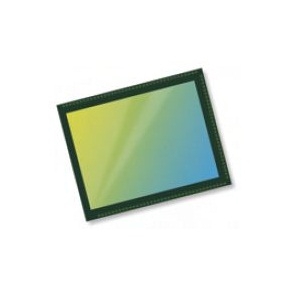

OV12895

CMOS Image Sensor by OmniVision Technologies

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV12895 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 12 MP, Supply Voltage 1.2 to 2.8 V, Frame Rate 30 to 60 fps, Clock Frequency 6 to 27 MHz, Operating Temperature -30 to 85 Degree C. More details for OV12895 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV12895
  • Manufacturer
    OmniVision Technologies
  • Description
    Color CMOS 12-megapixel (4096x3072) PureCel Plus-S Image Sensor

General Parameters

  • Resolution
    4096(H) x 3072(V)
  • Mega Pixels
    12 MP
  • Supply Voltage
    1.2 to 2.8 V
  • Optical Format
    1/2.3 Inch
  • Package Type
    COB
  • Chroma
    RGB, Bayer
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    30 to 60 fps
  • Pixel Size
    1.55 µm x 1.55 µm
  • Pixel
    12 MP
  • Active Array
    4096(H)µm x 3072(V)µm
  • Imaging Area
    6398.4 x 4811.2 µm
  • Type
    Area Scan Sensor, Digital Sensor
  • Clock Frequency
    6 to 27 MHz
  • Note
    Ray Angle: 5 Degree

Connections & Interface

  • Interface
    MIPI / LVDS

Applications

  • Application
    Consumer-grade Drones, 360 Degree Action Cameras, Surveillance Systems

Physical Properties

  • Dimensions
    7200 µm x 5750 µm

Temperature

  • Operating Temperature
    -30 to 85 Degree C
