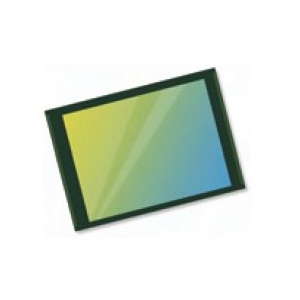

OV24A10

CMOS Image Sensor by OmniVision Technologies

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV24A10 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 24 MP, Supply Voltage 1.05 to 2.8 V, Frame Rate 30 to 240 fps, Dynamic Range 71 dB, Sensitivity 2700 to 3000 e-/Lux-sec. More details for OV24A10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV24A10
  • Manufacturer
    OmniVision Technologies
  • Description
    Color CMOS 24-Megapixel (5664x4248) Image Sensor with PureCel Plus-S Technology

General Parameters

  • Resolution
    5664(H) x 4248(V)
  • Mega Pixels
    24 MP
  • Supply Voltage
    1.05 to 2.8 V
  • Optical Format
    1/2.83 Inch
  • Package Type
    Die
  • Chroma
    RGB, Bayer
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    30 to 240 fps
  • Pixel Size
    0.9 µm x 0.9 µm
  • Pixel
    24 MP
  • Active Array
    5664(H)µm x 4248(V)µm
  • Dynamic Range
    71 dB
  • Imaging Area
    5664 x 4248 mm
  • Type
    Area Scan Sensor, Digital Sensor
  • Sensitivity
    2700 to 3000 e-/Lux-sec
  • SNR
    35.7 dB
  • Clock Frequency
    6 to 27 MHz
  • Note
    Ray Angle: 35.1 Degree

Connections & Interface

  • Interface
    MIPI

Applications

  • Application
    Smart Phones, PC Multimedia, Video Conferencing

Physical Properties

  • Dimensions
    6148.8 µm x 4406.4 um

Temperature

  • Operating Temperature
    -30 to 85 Degree C
