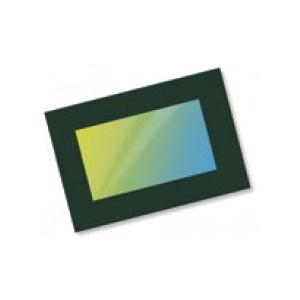

OV2732

CMOS Image Sensor by OmniVision Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV2732 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 2.07 MP, Frame Rate 60 to 240 fps, Clock Frequency 6 to 27 MHz, Supply Voltage 1.2 to 2.8 V, Operating Temperature -40 to 85 Degree C. More details for OV2732 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV2732
  • Manufacturer
    OmniVision Technologies
  • Description
    Color CMOS 1080p (1920x1080) HD PureCel™ Image Sensor

General Parameters

  • Resolution
    1920(H) x 1080(V)
  • Mega Pixels
    2.07 MP
  • Optical Format
    1.4 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 to 240 fps
  • Pixel
    2.07 MP
  • Pixel Size
    2 µm x 2 µm
  • Active Array
    1920(H)µm x 1080(V)µm
  • Imaging Area
    3868 µm x 2190 µm
  • Chroma
    RGB, Bayer
  • Type
    Area Scan Sensor, Digital Sensor
  • Clock Frequency
    6 to 27 MHz
  • Supply Voltage
    1.2 to 2.8 V
  • Package Type
    CSP
  • Note
    Ray Angle: 12 Degree

Connections & Interface

  • Interface
    MIPI DVP

Applications

  • Application
    Internet of Things (IoT), Lifestyle Camera, High-end Video Conferencing, Home Monitoring, Security

Physical Properties

  • Dimensions
    5174 µm x 3680 µm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
