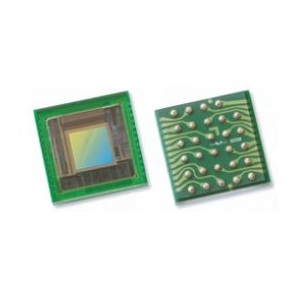

OV6211

CMOS Image Sensor by OmniVision Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV6211 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 0.160 MP, Frame Rate 120 to 380 fps, Sensitivity 2800 mV/lux-sec, Dynamic Range 66.5 dB, SNR 37.5 dB. More details for OV6211 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV6211
  • Manufacturer
    OmniVision Technologies
  • Description
    CMOS 160 Kpixel (400x400) Image Sensor with OmniPixel3-GS™ Technology

General Parameters

  • Resolution
    400(H) x 400(V)
  • Mega Pixels
    0.160 MP
  • Optical Format
    1/10.5 Inch
  • Shutter Type
    Global Shutter
  • Frame Rate
    120 to 380 fps
  • Pixel
    0.160 MP
  • Pixel Size
    3 µm x 3 µm
  • Active Array
    400(H)µm x 400(V)µm
  • Imaging Area
    1248 x 1248 um
  • Sensitivity
    2800 mV/lux-sec
  • Dynamic Range
    66.5 dB
  • Chroma
    Monochrome
  • SNR
    37.5 dB
  • Type
    Area Scan Sensor, Digital Sensor
  • Clock Frequency
    6 to 27 MHz
  • Supply Voltage
    1.7 to 3 V
  • Package Type
    CSP
  • Note
    Dark Current: 2000 e-/s, Ray Angle: 29.9 Degree

Connections & Interface

  • Interface
    SCCB

Applications

  • Application
    Cellular Phones, Digital Video Camcoders(DVC), PC Multimedia, tablets, Security/surveillance, Gaming

Physical Properties

  • Dimensions
    3175 µm x 3175 um

Temperature

  • Operating Temperature
    -30 to 70 Degree C
