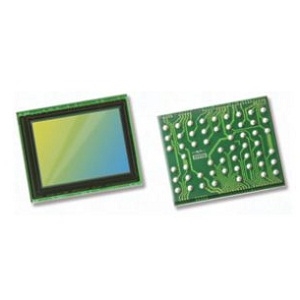

OV9756

CMOS Image Sensor by OmniVision Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV9756 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 1.23 MP(SXGA), Frame Rate 60 fps, Sensitivity 39.6 Ke-/Lux-sec, Dynamic Range 73.4 dB, SNR 43.1 dB. More details for OV9756 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV9756
  • Manufacturer
    OmniVision Technologies
  • Description
    RGB-Ir CMOS SXGA (1280x960) Image Sensor with OmniPixel3-HS™ Technology

General Parameters

  • Resolution
    1280(H) x 960(V)
  • Mega Pixels
    1.23 MP(SXGA)
  • Optical Format
    1/3 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 fps
  • Pixel
    1.23 MP(SXGA)
  • Pixel Size
    3.75 µm x 3.75 µm
  • Active Array
    1280(H)µm x 960(V)µm
  • Imaging Area
    4860 x 3660 µm
  • Sensitivity
    39.6 Ke-/Lux-sec
  • Dynamic Range
    73.4 dB
  • Chroma
    RGB, Infrared
  • SNR
    43.1 dB
  • Type
    Area Scan Sensor, Digital Sensor
  • Clock Frequency
    6 to 74.5 MHz
  • Supply Voltage
    1.7 to 3.45 V
  • Package Type
    CSP
  • Note
    Ray Angle: 9 Degree

Connections & Interface

  • Interface
    MIPI DVP

Applications

  • Application
    Security and Surveillance cameras, PC Multimedia, wearables, 960H for Analog CCTV Applications

Physical Properties

  • Dimensions
    6254 µm x 5194 µm

Temperature

  • Operating Temperature
    -30 to 85 Degree C
