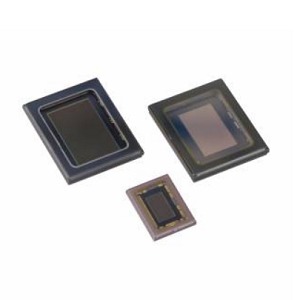

IMX335LQN

CMOS Image Sensor by RESTAR FRAMOS Technologies (SONY)
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to RESTAR FRAMOS Technologies (SONY).

The IMX335LQN is a 5.14 megapixel CMOS image sensor with a square pixel array. This chip operates with analog 2.9 V, digital 1.2 V, and interface 1.8 V triple power supply, and has low power consumption. It has high sensitivity, low dark current, and no smear, achieved through the adoption of R, G, and B primary color mosaic filters. This chip has an electronic shutter with variable charge-integration time. This image sensor is ideal for surveillance cameras, FA cameras, and Industrial cameras.

Product Specifications

View similar products

Product Details

  • Part Number
    IMX335LQN
  • Manufacturer
    RESTAR FRAMOS Technologies (SONY)
  • Description
    CMOS Image Sensor with Square Pixel for Color Cameras

General Parameters

  • Resolution
    2704(H) x 2104(V)
  • Mega Pixels
    5.69 MP
  • Shutter Type
    Electronic Shutter
  • Frame Rate
    60 fps
  • Pixel
    5.69 MP
  • Pixel Size
    2 x 2 µm
  • Sensitivity
    2200 mV
  • Chroma
    Color
  • ADC Resolution
    10 Bit
  • Clock Frequency
    Input Frequency: 6 to 74.25 MHz
  • Supply Voltage
    1.8 V
  • Package Type
    CSP, BGA

Connections & Interface

  • Interface
    CSI-2

Applications

  • Application
    Surveillance Cameras, FA Cameras, Industrial Cameras

Physical Properties

  • Optical Diagonal
    6.25 mm
  • Package
    88 Pin
