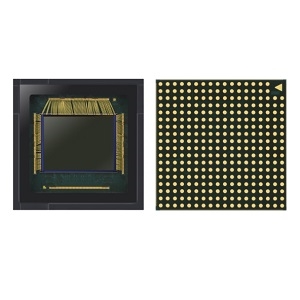

ISOCELL Bright HM1

CMOS Image Sensor by Samsung Semiconductors

Note: Your Quotation Request will be directed to Samsung Semiconductors.

The ISOCELL Bright HM1 from Samsung is a CMOS Image Sensor that delivers a resolution of 108 MP. It has a normal frame rate of 10 fps and a video frame rate of 240 fps at 1080p. It provides an ADC accuracy of up to 10 bits.

The ISOCELL Bright HM1 utilizes Samsung’s Nonacell pixel transformation technology, which allows for the virtual transformation of pixels, enabling superior performance, while Smart-ISO optimizes dynamic range. It enables direct pixel conversion, which means that shots taken with up to 3X zoom retain high, 12 Mp image quality. Employing small, 0.8 µm-sized pixels, the ISOCELL Bright HM1 features a larger 1/1.33-inch size, which improves the light absorption properties of the sensor, making it better equipped for low-light photography.



 Product Specifications

    Product Details

    • Part Number :
      ISOCELL Bright HM1
    • Manufacturer :
      Samsung Semiconductors
    • Description :
      108 MP Delivers High Resolution Images with Nanocell Technology

    General Parameters

    • Resolution :
      12000 (H) x 9000 (V)
    • Mega Pixels :
      108 MP
    • Supply Voltage :
      1.05 to 2.8 V
    • Optical Format :
      1/1.33-Inches
    • Chroma :
      RGB, Bayer
    • Shutter Type :
      Electronic Rolling Shutter (ERS), Global Shutter
    • Frame Rate :
      Up to 10fps(Normal), Up to 240fps(Video)
    • ADC Resolution :
      10 Bits
    • Pixel Size :
      0.8 µm x 0.8 µm

    Connections & Interface

    • Interface :
      4 lanes D-PHY / 3 lanes C-PHY

    Applications

    • Application Type :
      Mobile Phones, Smart Phones

    Temperature

    • Operating Temperature :
      -20 to 70 Degree C
