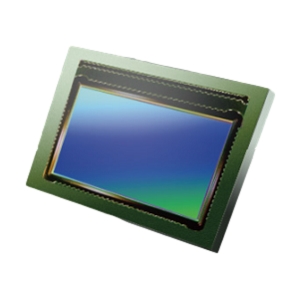

SC031AP

CMOS Image Sensor by SmartSens Technology
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SmartSens Technology.

The SC031AP from SmartSens Technology is a CMOS Image Sensor that is designed for automotive cameras. It has a 1/6.5” optical format that delivers a frame rate of 60 fps and a sensitivity of 9480 mV/lux*s. This image sensor has data saved in the EEPROM

Product Specifications

View similar products

Product Details

  • Part Number
    SC031AP
  • Manufacturer
    SmartSens Technology
  • Description
    0.3 MP, 60 Frames/sec, 644 x 484 Resolution Image Sensor

General Parameters

  • Resolution
    644 (H) x 484 (V)
  • Mega Pixels
    0.3 MP
  • Optical Format
    1/6.5 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 Frames/sec
  • Pixel
    NTSC, PAL
  • Pixel Size
    3.4 µm x 3.4 µm
  • Sensitivity
    9480 mV/Lux-s
  • Dynamic Range
    81 dB
  • Sensor Technology
    SFCPixel
  • Pixel Type
    DSI-2
  • SNR
    41 dB
  • ADC Resolution
    8 Bit
  • Supply Voltage
    3.3 V (Analog), 3.3 V (Digital), 1.8 V (I/O)
  • Package Type
    CSP
  • Note
    CRA: 25 Degrees

Connections & Interface

  • Interface
    DVP

Applications

  • Application
    Automotive Rear and Surround View Cameras, Dashcams, Security Cameras, Smart Home Cameras
  • Application Type
    Security

Physical Properties

  • Package
    35 pin CSP package
  • Dimensions
    2.8 mm x 2.68 mm

Temperature

  • Operating Temperature
    -30 to 85 Degree C
