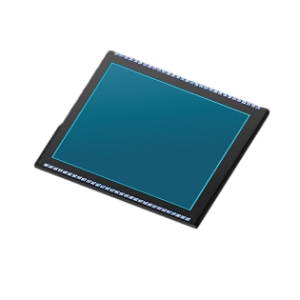

SC132GS

CMOS Image Sensor by SmartSens Technology
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SmartSens Technology.

The SC132GS from SmartSens Technology is a CMOS Image Sensor with Mega Pixels 1.3 MP, Frame Rate 60 to 120 Frames/sec, Sensitivity 7000 mV/Lux-s, Dynamic Range 66 to 100 dB, SNR 40 dB. More details for SC132GS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SC132GS
  • Manufacturer
    SmartSens Technology
  • Description
    8 MP, 60 to 120 Frames/sec, 1080 x 1280 Resolution Global Shutter Image Sensor

General Parameters

  • Resolution
    1080 (H) x 1280 (V)
  • Mega Pixels
    1.3 MP
  • Optical Format
    1/4 Inch
  • Shutter Type
    Global Shutter
  • Frame Rate
    60 to 120 Frames/sec
  • Pixel
    1.3 MP
  • Pixel Size
    2.7 µm x 2.7 µm
  • Sensitivity
    7000 mV/Lux-s
  • Dynamic Range
    66 to 100 dB
  • Pixel Type
    BSI
  • Chroma
    Monochrome
  • SNR
    40 dB
  • ADC Resolution
    8 Bit, 10 Bit, 12 Bit
  • Supply Voltage
    2.8 V (Analog), 1.2 V (Digital), 1.8 V (I/O)
  • Package Type
    COB
  • Note
    Output Format: RAW MONO, CRA: 25 Degrees

Connections & Interface

  • Interface
    MIPI, LVDS

Applications

  • Application
    3D Structured Light AI Applications, Biological Recognition Systems, Bar Code Scanners, Drone Object Avoidance Systems, Intelligent Sensing

Physical Properties

  • Package
    COB / Fan-out package

Temperature

  • Operating Temperature
    -40 to 85 Degree C
