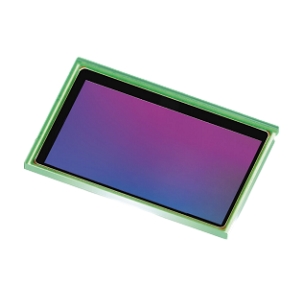

SC1330T

CMOS Image Sensor by SmartSens Technology
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SmartSens Technology.

The SC1330T from SmartSens Technology is a CMOS Image Sensor with Mega Pixels 1.23 MP, Frame Rate 60 Frames/sec, Sensitivity 2.6 to 15 V/Lux-s, Dynamic Range 100 dB, SNR 46 dB. More details for SC1330T can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SC1330T
  • Manufacturer
    SmartSens Technology
  • Description
    1.23 MP, 60 Frames/sec, 1288 x 968 Resolution Image Sensor

General Parameters

  • Resolution
    1288 (H) x 968 (V)
  • Mega Pixels
    1.23 MP
  • Optical Format
    1/2.8 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 Frames/sec
  • Pixel
    1.23 MP
  • Pixel Size
    4 µm x 4 µm
  • Sensitivity
    2.6 to 15 V/Lux-s
  • Dynamic Range
    100 dB
  • Sensor Technology
    PixGain® HDR
  • Chroma
    RGB
  • SNR
    46 dB
  • ADC Resolution
    8 Bit, 10 Bit, 12 Bit, 16 Bit
  • Supply Voltage
    3 V (Analog), 1.5 V (Digital), 1.8 V (I/O)
  • Package Type
    CSP
  • Note
    Output Format: RAW RGB, CRA: 15 Degrees

Connections & Interface

  • Interface
    MIPI, DVP, LVDS

Applications

  • Application
    Automotive Rear View Cameras, Automotive Surround View Cameras, Automotive Visible Light Cameras

Physical Properties

  • Package
    41-pin CSP package
  • Dimensions
    5.87 mm x 5.31 mm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
