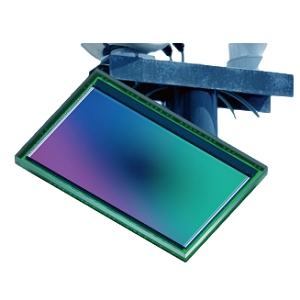

SC500AI

CMOS Image Sensor by SmartSens Technology
61 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SmartSens Technology.

The SC500AI from SmartSens Technology is a CMOS Image Sensor with Mega Pixels 5 MP, Frame Rate 60 Frames/sec, Sensitivity 3628 mV/Lux-s, Dynamic Range 79 to 100 dB, SNR 39 dB. More details for SC500AI can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SC500AI
  • Manufacturer
    SmartSens Technology
  • Description
    5 MP, 60 Frames/sec, 2888 x 1628 Resolution Image Sensor

General Parameters

  • Resolution
    2888 (H) x 1628 (V)
  • Mega Pixels
    5 MP
  • Optical Format
    1/2.7 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    60 Frames/sec
  • Pixel
    5 MP
  • Pixel Size
    2 µm x 2 µm
  • Sensitivity
    3628 mV/Lux-s
  • Dynamic Range
    79 to 100 dB
  • Chroma
    RGB
  • SNR
    39 dB
  • ADC Resolution
    8 Bit, 10 Bit
  • Supply Voltage
    2.8 V (Analog), 1.2/1.5 V (Digital), 1.8 V (I/O)
  • Package Type
    CSP
  • Note
    Output Format: RAW RGB, CRA: 15 Degrees

Connections & Interface

  • Interface
    MIPI

Applications

  • Application
    AI Security Cameras, Industrial Security Cameras, Video Conference Cameras
  • Application Type
    Security

Physical Properties

  • Package
    41 pin CSP package
  • Dimensions
    6.45 mm x 4.26 mm

Temperature

  • Operating Temperature
    -30 to 85 Degree C
