64-769

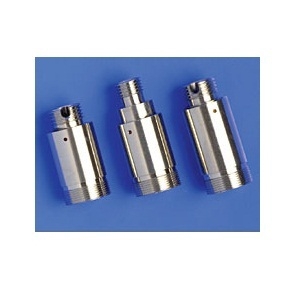

Collimator by Edmund Optics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edmund Optics.

The 64-769 from Edmund Optics is a Collimator with Wavelength Range 350 to 600 nm, Focal Length EFL: 6.24 mm. More details for 64-769 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    64-769
  • Manufacturer
    Edmund Optics
  • Description
    543nm Alignment, 0.40 NA Fiber Collimator w/ FC Connector

Physical Properties

  • Housing Diameter
    11 mm
  • Housing Length
    13 mm
  • Waist Diameter
    1.2 mm

General Parameters

  • Housing Material
    304L Stainless Steel Housing
  • Lens Mount
    M11 x 0.5
  • Lens Type
    Molded Aspheric Glass Lens
  • RoHs
    Yes
  • Collimator Type
    Fiber Optic Collimator
  • Wavelength Range
    350 to 600 nm
  • Focal Length
    EFL: 6.24 mm
  • Effective Focal Length(EFL)
    6.24 mm
  • Clear Aperture
    5 mm
  • Coating Material
    NIR
  • Design Wavelength
    543 nm
  • Substrate/Material
    D-ZLaF52LA

Connections & Interface

  • Connector
    FC
