87-353

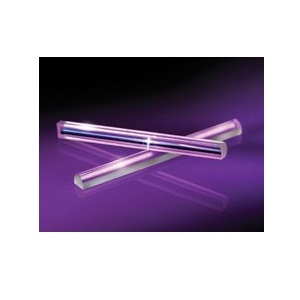

Collimator by Edmund Optics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edmund Optics.

The 87-353 from Edmund Optics is a Collimator with Wavelength Range 790 to 990 nm, Focal Length EFL: 1.49 mm. More details for 87-353 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    87-353
  • Manufacturer
    Edmund Optics
  • Description
    12mm, 1.49mm Focal Length, Fast Axis Collimator

Physical Properties

  • Overall Length Dimension
    12±0.05 mm

General Parameters

  • RoHs
    Yes
  • Collimator Type
    Fast Axis Collimator
  • Wavelength Range
    790 to 990 nm
  • Focal Length
    EFL: 1.49 mm
  • Back Focal Length(BFL)
    0.49 mm
  • Effective Focal Length(EFL)
    1.49 mm
  • Clear Aperture
    11.0 x 1.55 mm
  • Coating Material
    NIR
  • Substrate/Material
    S-TIH53
