225 004

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MÖLLER-WEDEL OPTICAL GmbH.

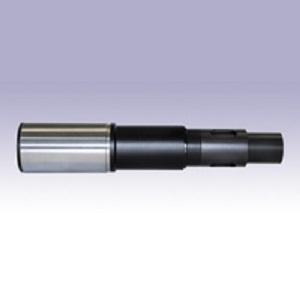

The 225 004 from MÖLLER-WEDEL OPTICAL GmbH is a Fixed Focus Collimator that operates at a wavelength of 525 nm. It has a focal length of 50 mm and free aperture size of 10 mm. This collimator has a tube diameter of 40 mm and field of view of 10 deg. It includes a collimator reticle and the adjustment is made to infinite distance of the reticle image.

Product Specifications

View similar products

Product Details

  • Part Number
    225 004
  • Manufacturer
    MÖLLER-WEDEL OPTICAL GmbH
  • Description
    525 nm Fixed Focus Collimator

Applications

  • Applications
    Measurement of angular displacements (in conjunction with a telescope), Testing of the infinity setting of camera objectives, Testing of the imaging properties of optical elements and systems

Physical Properties

  • Overall Length Dimension
    65 mm
  • Tube Diameter
    40 mm

General Parameters

  • Wavelength Range
    546 nm
  • Focal Length
    50 mm
  • Collimated Beam Diameter
    Ø 24.5 mm
  • Clear Aperture
    10 mm
  • Note
    Field of view: 10 Degree
