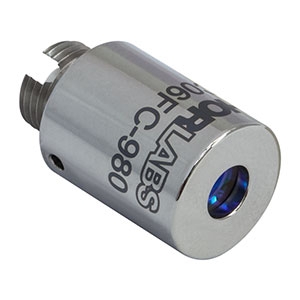

TC06FC-980

Collimator by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The TC06FC-980 from Thorlabs Inc is a Collimator with Wavelength Range 907 to 1064 nm, Focal Length 6.11 mm. More details for TC06FC-980 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TC06FC-980
  • Manufacturer
    Thorlabs Inc
  • Description
    Customer Inspired-980 nm, f=6.11 mm, NA=0.28, FC/PC Triplet Collimator

Physical Properties

  • Overall Length Dimension
    20.3 mm (0.80")
  • Waist Diameter
    1.31 mm

General Parameters

  • RoHs
    Yes
  • Waist Distance
    1.03 mm
  • Collimator Type
    Triplet Collimator, Fiber Optic Collimator
  • Wavelength Range
    907 to 1064 nm
  • Focal Length
    6.11 mm
  • Beam Divergence
    0.054 Degree
  • Design Wavelength
    980 nm
  • Numerical Aperture :
    0.28

Connections & Interface

  • Connector
    2.2 mm, FC/PC
