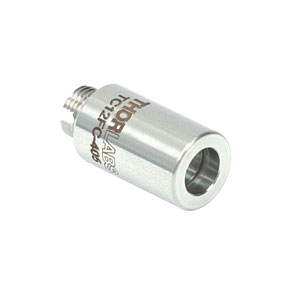

TC12FC-405

Collimator by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The TC12FC-405 from Thorlabs Inc is a Collimator with Wavelength Range 404 to 406 nm, Focal Length 11.14 mm. More details for TC12FC-405 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TC12FC-405
  • Manufacturer
    Thorlabs Inc
  • Description
    405 nm, f=11.14 mm, NA=0.28, FC/PC Triplet Collimator

Physical Properties

  • Overall Length Dimension
    24.9 mm (0.98")
  • Waist Diameter
    2.12 mm

General Parameters

  • RoHs
    Yes
  • Waist Distance
    7.65 mm
  • Collimator Type
    Triplet Collimator, Fiber Optic Collimator
  • Wavelength Range
    404 to 406 nm
  • Focal Length
    11.14 mm
  • Beam Divergence
    0.015 Degree
  • Design Wavelength
    405 nm
  • Numerical Aperture :
    0.28

Connections & Interface

  • Connector
    2.2 mm, FC/PC

Technical Documents
Click to view more product details on manufacturer's website
