TC25APC-1064

Collimator by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

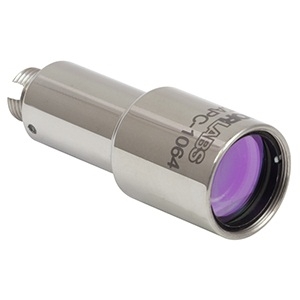

The TC25APC-1064 from Thorlabs Inc is a Collimator with Wavelength Range 1035 to 1097 nm, Focal Length 25.23 mm. More details for TC25APC-1064 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TC25APC-1064
  • Manufacturer
    Thorlabs Inc
  • Description
    1060 nm, f=25.23 mm, NA=0.25, FC/APC Triplet Collimator

Physical Properties

  • Overall Length Dimension
    43.3 mm (1.70")
  • Waist Diameter
    5.49 mm

General Parameters

  • RoHs
    Yes
  • Waist Distance
    17.29 mm
  • Collimator Type
    Triplet Collimator, Fiber Optic Collimator
  • Wavelength Range
    1035 to 1097 nm
  • Focal Length
    25.23 mm
  • Beam Divergence
    0.014 Degree
  • Design Wavelength
    1060 nm
  • Numerical Aperture :
    0.25

Connections & Interface

  • Connector
    2.2 mm, FC/APC

Technical Documents
