7202

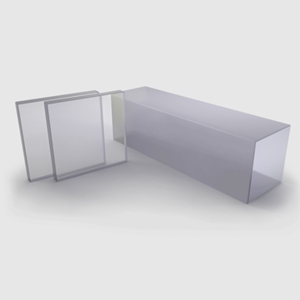

Optical Crystal by 4Lasers
Request Quote

Note: Your Quotation Request will be directed to 4Lasers.

The 7202 from 4Lasers is a Optical Crystal with θ (Theta) 90 deg, φ(Phi) 11.6 deg, Crystal Density 2.474 g/cm3, Wavelength range 1064 nm, Transparency Region 155 nm to 3.2 µm. More details for 7202 can be seen below.

Product Specifications

Product Details

  • Part Number
    7202
  • Manufacturer
    4Lasers

Applications

  • Application
    Second-Harmonic Generation

General Parameters

  • Crystal Type
    Non-Linear Crystal
  • Crystal Material
    Lithium Triborate (LBO)
  • Crystal Structure
    Orthorhombic, mm2
  • θ (Theta)
    90 deg
  • φ(Phi)
    11.6 deg
  • Crystal Density
    2.474 g/cm3
  • Wavelength range
    1064 nm
  • Perpendicularity
    <10 arcmin
  • Parallelism
    <20 arcsec
  • Surface Quality
    10-5 scratch-dig
  • Transparency Region
    155 nm to 3.2 µm
  • Optical Symmetry
    Negative biaxial
  • Chamfers
    <0.1 mm at 45 Degree
  • Clear Aperture
    >90%
  • Coating
    AR coatings on both sides
  • Lattice Parameters
    a = 8,46 Å, b = 7,38 Å, c = 12,717 Å
  • Mounting Type
    Unmounted
  • Orientation accuracy
    <30 arcmin
  • Transmitted Wavefront Distortion
    <λ/4 @ 632.8 nm
  • Damage Threshold
    >1 GW/cm2
  • Refractive Indices
    1.5656 to 1.6055

Physical Properties

  • Face Dimension
    3 x 3 mm
  • Face Dimensions Tolerance
    +0.0/-0.1 mm
  • Length Tolerance
    ±0.1 mm
