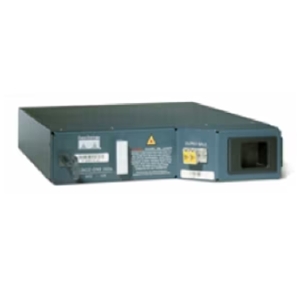

15216-DCU-750=

Dispersion Compensation Module by CISCO
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to CISCO.

The 15216-DCU-750= from CISCO is a Dispersion Compensation Module with Compensated Fiber Length(Distance) 7.14 km, Dispersion Compensation Level 750 ps/nm, Insertion Loss 5 dB, Wavelength Range 1525 to 1565 nm, Polarization Dependent Loss <0.1 dB. More details for 15216-DCU-750= can be seen below.

Product Specifications

Product Details

  • Part Number
    15216-DCU-750=
  • Manufacturer
    CISCO

General Parameters

  • Compensated Fiber Length(Distance)
    7.14 km
  • Dispersion Compensation Level
    750 ps/nm
  • Technology
    Dispersion Compensation Fiber (DCF)
  • Insertion Loss
    5 dB
  • Wavelength Range
    1525 to 1565 nm
  • Band
    C-Band
  • Polarization Dependent Loss
    <0.1 dB
  • Polarization Mode Dispersion
    <1 ps
  • Center Wavelength
    1545.32 nm
  • Optical Return Loss
    >45 dB
  • Package
    Rack Mount
  • Relative Dispersion Slope
    0.0037 nm

Connections & Interface

  • Optical Connector
    LC/UPC

Environmental Conditions

  • Operating Temperature
    -5 to 55 Degree C
  • Relative Humidity
    95%, non-condensing

Physical Properties

  • Dimension
    1.62 x 8.20 x 9.78 in. (H x W x D)
  • Module Dimension
    19 or 23 inches
  • Weight
    2 kg, 3.5 kg
