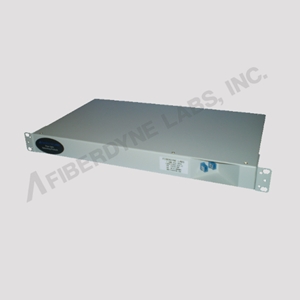

DCM-20

Dispersion Compensation Module by Fiberdyne Labs
7 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fiberdyne Labs.

The DCM-20 from Fiberdyne Labs is a Dispersion Compensation Module with Compensated Fiber Length(Distance) 20 km, Dispersion Compensation Level -340±10 ps/nm, Insertion Loss 2.9 to 3.5 dB, Wavelength Range 1525 to 1565 nm, Polarization Dependent Loss <0.1 dB. More details for DCM-20 can be seen below.

Product Specifications

Product Details

  • Part Number
    DCM-20
  • Manufacturer
    Fiberdyne Labs

Applications

  • Applications
    SDH/SONET system, DWDM system, CATV system

General Parameters

  • Compensated Fiber Length(Distance)
    20 km
  • Dispersion Compensation Level
    -340±10 ps/nm
  • Technology
    Dispersion Compensation Fiber (DCF)
  • Insertion Loss
    2.9 to 3.5 dB
  • Wavelength Range
    1525 to 1565 nm
  • Band
    C-Band
  • Polarization Dependent Loss
    <0.1 dB
  • Polarization Mode Dispersion
    0.4 to 0.6 ps
  • Brillouin scattering threshold
    4 dBm (SBS Threshold)
  • Dispersion Accuracy
    ±10 ps/nm
  • Effective Area
    20 µm2
  • Fiber Length
    0.9±0.1 m
  • Fiber Type
    G.652
  • Non-linear coefficient
    1.4x10-9 W-1
  • Package
    Rack Mount
  • Relative Dispersion Slope
    0.0036 nm ± 20%
  • RoHs
    Yes
  • Wavelength Dependent Loss
    0.3 to 0.5 dB

Connections & Interface

  • Optical Connector
    LC/UPC

Environmental Conditions

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
