FMT80-DCM

Dispersion Compensation Module by FS.COM Inc
3 more products from this company
Request Quote

Note: Your Quotation Request will be directed to FS.COM Inc.

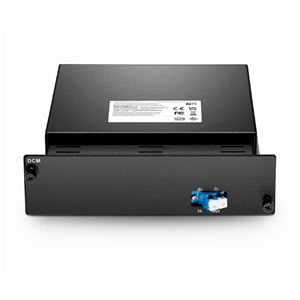

The FMT80-DCM from FS.COM Inc is a Dispersion Compensation Module with Compensated Fiber Length(Distance) 80 km, Dispersion Compensation Level -1360±3% ps/nm, Insertion Loss 5.8 dB, Wavelength Range 1525 to 1565 nm, Polarization Dependent Loss 0.1 dB. More details for FMT80-DCM can be seen below.

Product Specifications

Product Details

  • Part Number
    FMT80-DCM
  • Manufacturer
    FS.COM Inc

General Parameters

  • Compensated Fiber Length(Distance)
    80 km
  • Dispersion Compensation Level
    -1360±3% ps/nm
  • Technology
    Dispersion Compensation Fiber (DCF)
  • Insertion Loss
    5.8 dB
  • Wavelength Range
    1525 to 1565 nm
  • Band
    C-Band
  • Polarization Dependent Loss
    0.1 dB
  • Polarization Mode Dispersion
    1.2 ps
  • Fiber Type
    G.652, G.655
  • Latency
    40 µs
  • Noise Figure
    4.5 dB
  • Optical Return Loss
    >50 dB
  • Package
    Pluggable Module
  • Power Consumption
    <1 W

Connections & Interface

  • Optical Connector
    LC/UPC

Environmental Conditions

  • Operating Temperature
    -5 to 55 Degree C
  • Storage Temperature
    -40 to 85 Degree C
