FS-DCM

Dispersion Compensation Module by FS.COM Inc

Note: Your Quotation Request will be directed to FS.COM Inc.

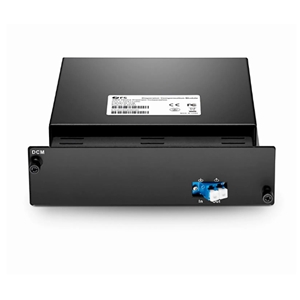

The FS-DCM from FS.COM Inc is a Dispersion Compensation Module with Compensated Fiber Length(Distance) 20 to 100 km, Insertion Loss 2.5 to 6.5 dB, Wavelength Range 1525 to 1565 nm, Polarization Dependent Loss <0.1 dB, Polarization Mode Dispersion 0.5 to 1.5 ps. More details for FS-DCM can be seen below.

Product Specifications

Product Details

  • Part Number
    FS-DCM
  • Manufacturer
    FS.COM Inc

General Parameters

  • Compensated Fiber Length(Distance)
    20 to 100 km
  • Technology
    Dispersion Compensation Fiber (DCF)
  • Insertion Loss
    2.5 to 6.5 dB
  • Wavelength Range
    1525 to 1565 nm
  • Band
    C-Band
  • Polarization Dependent Loss
    <0.1 dB
  • Polarization Mode Dispersion
    0.5 to 1.5 ps
  • Fiber Type
    G.652, G.655
  • Latency
    10 µs
  • Package
    Rack Mount, Pluggable Module

Connections & Interface

  • Optical Connector
    LC/UPC, LC/APC

Environmental Conditions

  • Operating Temperature
    -5 to 55 Degree C
  • Relative Humidity
    5 to 95 % (non-condensing)
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Module Dimension
    19 inches
Click to view more product details on manufacturer's website
