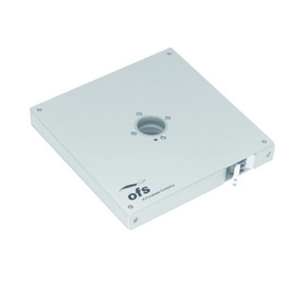

SMF-DK

Dispersion Compensation Module by OFS Global

Note: Your Quotation Request will be directed to OFS Global.

The SMF-DK from OFS Global is a Dispersion Compensation Module with Compensated Fiber Length(Distance) 5 to 150 km (Compensated fiber length), Dispersion Compensation Level 85 to 2550 ps/nm (Nominal Dispersion), Insertion Loss 0.30 to 11.20 dB (BOL RT, EOL over temperature), Wavelength Range 1528 to 1565 nm, Polarization Dependent Loss 0.1 dB. More details for SMF-DK can be seen below.

Product Specifications

Product Details

  • Part Number
    SMF-DK
  • Manufacturer
    OFS Global

General Parameters

  • Compensated Fiber Length(Distance)
    5 to 150 km (Compensated fiber length)
  • Dispersion Compensation Level
    85 to 2550 ps/nm (Nominal Dispersion)
  • Technology
    Dispersion Compensation Fiber (DCF)
  • Insertion Loss
    0.30 to 11.20 dB (BOL RT, EOL over temperature)
  • Wavelength Range
    1528 to 1565 nm
  • Band
    C-Band
  • Polarization Dependent Loss
    0.1 dB
  • Polarization Mode Dispersion
    0.08 to 0.85 ps
  • Package
    Rack Mount
  • Wavelength Dependent Loss
    0.40 to 1.25 dB

Connections & Interface

  • Optical Connector
    LC/PC, SC/UPC, FC/APC, FMU/UPC, SC/APC, LC/APC, E2000, FC/PC

Environmental Conditions

  • Operating Temperature
    -5 to 70 Degree C
  • Relative Humidity
    5 to 85 % (Relative)
  • Storage Humidity
    5 to 85 % (Relative)
  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Dimension
    140 x 22 mm, 16 x 22 mm, 175 x 23 mm
  • Module Dimension
    19 inches, 21 inches
