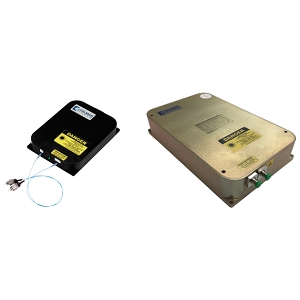

AMP-PM23M

Optical Amplifier by Calmar Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Calmar Laser.

The AMP-PM23M from Calmar Laser is a Optical Amplifier with Input Power -25 to 10 dBm, Noise Figure <6.5 dB, Input Power -25 to 10 dBm, Output Power 23 dBm, Output Power 23 dBm. More details for AMP-PM23M can be seen below.

Product Specifications

Product Details

  • Part Number
    AMP-PM23M
  • Manufacturer
    Calmar Laser
  • Description
    1550 nm Erbium-doped Fiber Amplifier Module

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Bands
    C Band
  • Output Type
    CW
  • Center Wavelength
    1530 to 1565 nm
  • Package Type
    Module
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    >20 dB
  • RoHS
    Yes
  • Input Power
    -25 to 10 dBm
  • Noise Figure :
    <6.5 dB
  • Gain Material
    Erbium-Doped
  • Package
    Module
  • Small Signal Gain
    35 dB
  • Input Power
    -25 to 10 dBm
  • Output Power
    23 dBm
  • Output Power :
    23 dBm
  • Wavelength Range
    1530 to 1565 nm

Applications

  • Application
    Seed laser amplification, C-band channel pre- or boost amplification, Narrow band amplification in access or CATV networks, DWDM metro network, LIDAR/3D sensing amplifier, Short pulse amplification

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Polarization Maintaining
