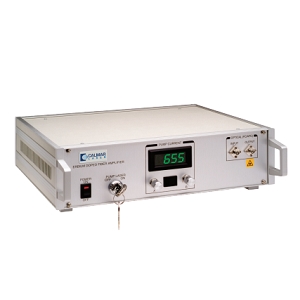

AMP-ST18

Optical Amplifier by Calmar Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Calmar Laser.

The AMP-ST18 from Calmar Laser is a Optical Amplifier with Input Power -25 to 10 dBm, Noise Figure <5.5 dB, Input Power -25 to 10 dBm, Output Power 18 dBm, Output Power 18 dBm. More details for AMP-ST18 can be seen below.

Product Specifications

Product Details

  • Part Number
    AMP-ST18
  • Manufacturer
    Calmar Laser
  • Description
    1550 nm Non-Polarization Maintaining Erbium-Doped Fiber Benchtop Amplifier

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC, 9-pin D-sub connector
  • Bands
    C Band
  • Output Type
    CW
  • Center Wavelength
    1530 to 1565 nm
  • Package Type
    Benchtop / Rackmount
  • Polarization
    Random
  • Input Power
    -25 to 10 dBm
  • Noise Figure :
    <5.5 dB
  • Gain Material
    Erbium-Doped
  • Interface
    RS232
  • Laser Class
    Class IV
  • Package
    Benchtop
  • Small Signal Gain
    30 dB
  • Warm up time
    <10 Minutes
  • Input Power
    -25 to 10 dBm
  • Output Power
    18 dBm
  • Output Power :
    18 dBm
  • Supply Voltage (AC)
    85 to 264 VAC / 47 to 63 Hz
  • Wavelength Range
    1530 to 1565 nm

Applications

  • Application
    Seed laser amplification, C-band channel pre- or boost amplification, Narrow band amplification in access or CATV networks, DWDM metro network, Core network, Short pulse amplification

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    34.9 x 43.7 x 10 cm ( W x D x H )
  • Weight
    6 kg
