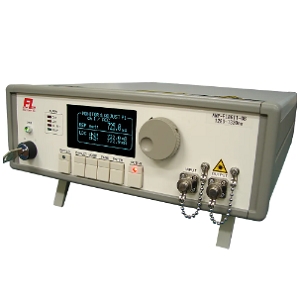

AMP-FL5221-SB

Optical Amplifier by Fiberlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fiberlabs Inc.

The AMP-FL5221-SB from Fiberlabs Inc is a Optical Amplifier with Input Power -30 to 0 dBm, Noise Figure <7 dB, Gain 25 to 30 dB, Input Power -30 to 0 dBm, Output Power 16 to 19 dBm. More details for AMP-FL5221-SB can be seen below.

Product Specifications

Product Details

  • Part Number
    AMP-FL5221-SB
  • Manufacturer
    Fiberlabs Inc
  • Description
    YDFA S-band Optical Amplifier

General Parameters

  • Amplifier Type
    Ytterbium-Doped Fiber Amplifier (YDFA), Booster Optical Amplifier (BOA), Pre-Amplifier, In-Line Amplifier
  • Connectors
    SC/PC
  • Bands
    S Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Control Mode
    Automatic Current Control (ACC), Automatic Level Control (ALC)
  • Input Power
    -30 to 0 dBm
  • Noise Figure :
    <7 dB
  • Gain Material
    Ytterbium-Doped
  • Interface
    RS232C
  • Laser Class
    Class 3B, Class 3R
  • Package
    Benchtop
  • Power Consumption
    <50 to 200 mW
  • Gain
    25 to 30 dB
  • Input Power
    -30 to 0 dBm
  • Output Power
    16 to 19 dBm
  • Isolation
    >40 dB
  • Output Power :
    16 to 19 dBm
  • Supply Voltage (AC)
    100 to 240 VAC, 50/60Hz
  • Wavelength Range
    1470 to 1520 nm

Applications

  • Application
    Laboratory Use, Test and Measurement, Integration in System, Booster, In-line and Pre amplifier

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode
  • Fiber Type
    SMF (Corning SMF28e)

Physical Properties

  • Dimension
    43 x 440 x 403 mm (H x W x D)
  • Weight
    <6 kg
