AMP-FL8015-CB-37

Optical Amplifier by Fiberlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Fiberlabs Inc.

The AMP-FL8015-CB-37 from Fiberlabs Inc is a Optical Amplifier with Input Power 0 dBm, Noise Figure <6 dB, Input Power 0 dBm, Output Power >37 dBm, Output Power >37 dBm. More details for AMP-FL8015-CB-37 can be seen below.

Product Specifications

Product Details

  • Part Number
    AMP-FL8015-CB-37
  • Manufacturer
    Fiberlabs Inc
  • Description

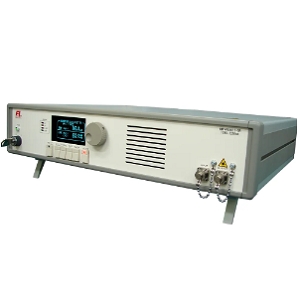

    C-band high-power amplifier (EDFA, Bench Top)

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Bands
    C Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Control Mode
    Automatic Current Control (ACC), Automatic Level Control (ALC)
  • Input Power
    0 dBm
  • Noise Figure :
    <6 dB
  • Gain Material
    Erbium-Doped
  • Interface
    RS232C / IEEE488.1(GP-IB)
  • Laser Class
    Class 4
  • Package
    Benchtop
  • Power Consumption
    <80 W
  • Input Power
    0 dBm
  • Output Power
    >37 dBm
  • Output Power :
    >37 dBm
  • Supply Voltage (AC)
    100 to 240 VAC, 50/60Hz
  • Wavelength Range
    1540 to 1560 nm

Applications

  • Application
    Laboratory Use, Test and Measurement, Integration in System

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 60 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode
  • Fiber Type
    Corning SMF28

Physical Properties

  • Dimension
    88 x 440 x 350 mm (H x W x D)
  • Weight
    <10 kg
