35926

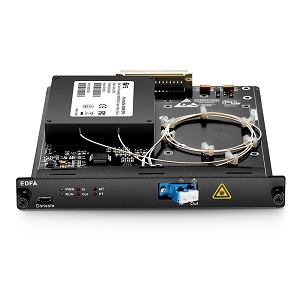

Optical Amplifier by FS.COM Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to FS.COM Inc.

The 35926 from FS.COM Inc is a Optical Amplifier with Input Power -30 to 5 dBm, Saturated Output Power 22 dBm, Saturated Output Power 22 dBm, Gain 15 to 33 dB, Input Power -30 to 5 dBm. More details for 35926 can be seen below.

Product Specifications

Product Details

  • Part Number
    35926
  • Manufacturer
    FS.COM Inc
  • Description
    DWDM ErbiumDopedFiberAmplifier

General Parameters

  • Amplifier Type
    Booster Optical Amplifier (BOA)
  • Connectors
    LC/UPC
  • Bands
    C Band
  • Gain Flatness :
    1 to 1.5 dB
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Polarization Dependent Gain
    0.3 dB
  • Control Mode
    Automatic Gain Control (AGC)
  • Input Power
    -30 to 5 dBm
  • Saturated Output Power
    22 dBm
  • Saturated Output Power
    22 dBm
  • Output Power Stability
    ±0.05 to ±0.2 dB
  • Package
    1U 19'' Rack mount
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    0.3 ps
  • Power Consumption
    20 W
  • Return Loss
    45 dB
  • Gain
    15 to 33 dB
  • Input Power
    -30 to 5 dBm
  • Isolation
    30 dB
  • Wavelength Range
    1528 to 1564 nm

Applications

  • Application
    C-band 40CH DWDM, Other optical systems

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -20 to 75 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
