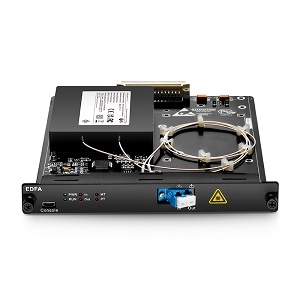

FMT20PA-EDFA

Optical Amplifier by FS.COM Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to FS.COM Inc.

The FMT20PA-EDFA from FS.COM Inc is a Optical Amplifier with Input Power -30 to 5 dBm, Noise Figure 4.5 dB, Gain 20 dB, Input Power -30 to 5 dBm, Wavelength Range 1528 to 1564 nm. More details for FMT20PA-EDFA can be seen below.

Product Specifications

Product Details

  • Part Number
    FMT20PA-EDFA
  • Manufacturer
    FS.COM Inc
  • Description
    20dB Gain Pre-Amplifier DWDM EDFA

General Parameters

  • Amplifier Type
    Pre-Amplifier, Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    LC/UPC
  • Bands
    C Band
  • Gain Flatness :
    1dB
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Control Mode
    Automatic Gain Control (AGC)
  • Input Power
    -30 to 5 dBm
  • Noise Figure :
    4.5 dB
  • Package
    Rackmount
  • Gain
    20 dB
  • Input Power
    -30 to 5 dBm
  • Wavelength Range
    1528 to 1564 nm

Applications

  • Application
    C-band 40CH DWDM, Other optical systems

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -20 to 75 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    482.6 x 44.50 x 300 mm (W x H x D)
