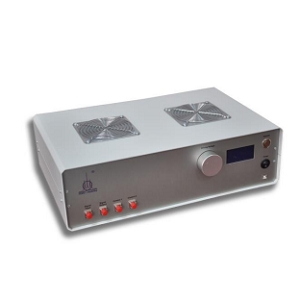

FOA-EDFA-HP-30-1-L-C

Optical Amplifier by FORC-Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to FORC-Photonics.

The FOA-EDFA-HP-30-1-L-C from FORC-Photonics is a Optical Amplifier with Input Power 20 mW, Input Power 20 mW, Output Power >4 W, Output Power >4 W. More details for FOA-EDFA-HP-30-1-L-C can be seen below.

Product Specifications

Product Details

  • Part Number
    FOA-EDFA-HP-30-1-L-C
  • Manufacturer
    FORC-Photonics
  • Description
    FIBER AMPLIFIERS ERBIUM DOPED

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Output Type
    CW
  • Center Wavelength
    1550 nm
  • Package Type
    Benchtop / Rackmount
  • Input Power
    20 mW
  • Gain Material
    Erbium-Doped
  • Package
    Benchtop
  • Spectral Width (FWHM)
    >15 nm
  • Input Power
    20 mW
  • Output Power
    >4 W
  • Output Power :
    >4 W

Applications

  • Application
    Remote sensing (lidars), three-photon microscopy, scientific instrumentation, pumping of different lasers types.

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode, Polarization Maintaining
  • Fiber Type
    SM20/125, SMF28, SM20/125PM

Physical Properties

  • Dimension
    474 x 300 x 135 mm (LxWxH)
  • Weight
    <10 kg
