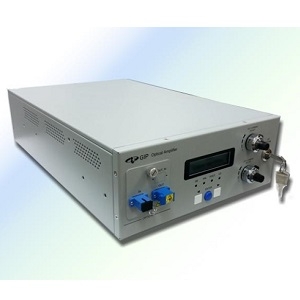

AMP-YFA-00-00-U

Optical Amplifier by GIP Technology Corp.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to GIP Technology Corp..

The AMP-YFA-00-00-U from GIP Technology Corp. is a Optical Amplifier with Input Power -10 to 5 dBm, Saturated Output Power 10 to 27 dBm, Saturated Output Power 10 to 27 dBm, Input Power -10 to 5 dBm, Supply Voltage (AC) 100 to 240 VAC. More details for AMP-YFA-00-00-U can be seen below.

Product Specifications

Product Details

  • Part Number
    AMP-YFA-00-00-U
  • Manufacturer
    GIP Technology Corp.
  • Description
    Yterbium-Doped Fiber Amplifier

General Parameters

  • Amplifier Type
    Ytterbium-Doped Fiber Amplifier (YDFA)
  • Connectors
    SC, FC
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Polarization
    Random, Linear
  • Control Mode
    Automatic Power Control (APC)
  • Polarization Extinction Ratio :
    20 dB
  • Input Power
    -10 to 5 dBm
  • Saturated Output Power
    10 to 27 dBm
  • Saturated Output Power
    10 to 27 dBm
  • Gain Material
    Ytterbium-Doped
  • Interface
    RS-232
  • Package
    Benchtop
  • Return Loss
    45 dB
  • Input Power
    -10 to 5 dBm
  • Supply Voltage (AC)
    100 to 240 VAC
  • Wavelength Range
    1030 to 1080 nm

Applications

  • Application
    Coherent beam combining, Spectroscopy & Interferometry, Sensing system

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -20 to 80 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Polarization Maintaining

Physical Properties

  • Dimension
    250 x 390 x 100 mm
