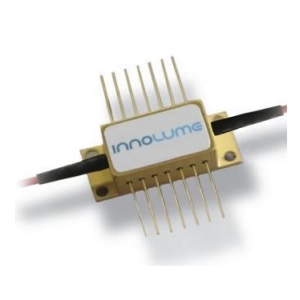

BOA-1310-50-YY-200mW

Optical Amplifier by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The BOA-1310-50-YY-200mW from Innolume is a Optical Amplifier with Saturated Output Power 18 to 21 dBm, Saturated Output Power 18 to 21 dBm, Gain 36 to 39 dB, Output Power 200 to 250 mW, Operating Current 1000 to 1500 mA. More details for BOA-1310-50-YY-200mW can be seen below.

Product Specifications

Product Details

  • Part Number
    BOA-1310-50-YY-200mW
  • Manufacturer
    Innolume
  • Description
    1290 to 1320 nm Butterfly CW Booster Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    50 nm
  • Amplifier Type
    Booster Optical Amplifier (BOA)
  • ASE Bandwidth
    17 nm
  • Connectors
    FC/APC
  • ASE Output Power
    60 mW
  • ASE Wavelength
    1300 nm
  • Output Type
    CW
  • Center Wavelength
    1290 to 1320 nm
  • Package Type
    Butterfly
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    15 to 18 dB
  • Saturated Output Power
    18 to 21 dBm
  • Forward Voltage
    1.6 to 1.8 V
  • Saturated Output Power
    18 to 21 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    36 to 39 dB
  • Output Power
    200 to 250 mW
  • Operating Current
    1000 to 1500 mA
  • Output Power :
    200 to 250 mW
  • Note
    BOA reverse voltage: 2 V

Applications

  • Application
    Swept-source, tunable lasers, Boosting laser transmitters, Optical coherence tomography (OCT)

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining
