SOA-1000-100-YY-30dB

Optical Amplifier by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The SOA-1000-100-YY-30dB from Innolume is a Optical Amplifier with Input Power 20 dBm, Noise Figure 6.5 dB, Saturated Output Power 15 to 18 dBm, Saturated Output Power 15 to 18 dBm, Gain 80 to 100 dB. More details for SOA-1000-100-YY-30dB can be seen below.

Product Specifications

Product Details

  • Part Number
    SOA-1000-100-YY-30dB
  • Manufacturer
    Innolume
  • Description

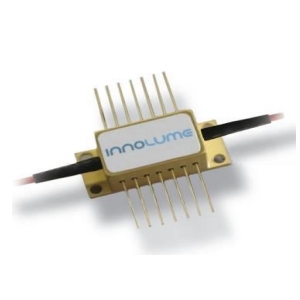

    985 to 1015 nm Butterfly CW Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    80 to 100 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • ASE Bandwidth
    80 to 100 nm
  • Connectors
    FC/APC
  • ASE Output Power
    15 to 25 mW
  • ASE Wavelength
    985 to 1015 nm
  • Output Type
    CW
  • Center Wavelength
    985 to 1015 nm
  • Package Type
    Butterfly
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    15 to 18 dB
  • Input Power
    20 dBm
  • Noise Figure :
    6.5 dB
  • Saturated Output Power
    15 to 18 dBm
  • Forward Voltage
    1.7 to 1.9 V
  • Saturated Output Power
    15 to 18 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    80 to 100 dB
  • Input Power
    20 dBm
  • Operating Current
    600 to 700 mA
  • Note
    SOA reverse voltage: 2 V

Applications

  • Application
    Swept-source, tunable lasers, Booster optical amplifiers, Optical preamplifiers, Optical coherence tomography (OCT)

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining
