SOA-1060-90-YY-30dB

Optical Amplifier by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The SOA-1060-90-YY-30dB from Innolume is a Optical Amplifier with Input Power 20 dBm, Noise Figure 5 dB, Saturated Output Power 15 to 18 dBm, Saturated Output Power 15 to 18 dBm, Gain 30 to 33 dB. More details for SOA-1060-90-YY-30dB can be seen below.

Product Specifications

Product Details

  • Part Number
    SOA-1060-90-YY-30dB
  • Manufacturer
    Innolume
  • Description

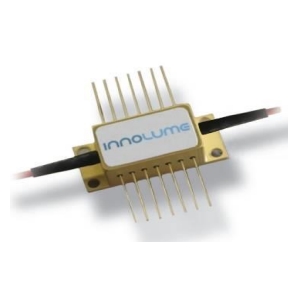

    1045 to 1075 nm Butterfly CW Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    70 to 90 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • ASE Bandwidth
    70 to 90 nm
  • Connectors
    FC/APC
  • ASE Output Power
    5 to 7 mW
  • ASE Wavelength
    1035 to 1065 nm
  • Output Type
    CW
  • Center Wavelength
    1045 to 1075 nm
  • Package Type
    Butterfly
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    15 to 19 dB
  • Input Power
    20 dBm
  • Noise Figure :
    5 dB
  • Saturated Output Power
    15 to 18 dBm
  • Forward Voltage
    1.5 to 1.7 V
  • Saturated Output Power
    15 to 18 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    30 to 33 dB
  • Input Power
    20 dBm
  • Operating Current
    400 to 500 mA
  • Note
    SOA reverse voltage: 2 V

Applications

  • Application
    Swept-source, tunable lasers, Booster optical amplifiers, Optical preamplifiers, Optical coherence tomography (OCT)

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining
