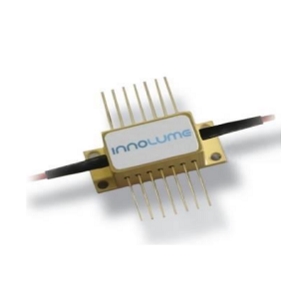

SOA-1130-20-YY-35dB

Optical Amplifier by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The SOA-1130-20-YY-35dB from Innolume is a Optical Amplifier with Input Power 20 dBm, Noise Figure 10 dB, Saturated Output Power 12 to 15 dBm, Saturated Output Power 12 to 15 dBm, Gain 30 to 35 dB. More details for SOA-1130-20-YY-35dB can be seen below.

Product Specifications

Product Details

  • Part Number
    SOA-1130-20-YY-35dB
  • Manufacturer
    Innolume
  • Description
    1120 to 1140 nm Butterfly CW Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    20 to 25 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • ASE Bandwidth
    20 to 27 nm
  • Connectors
    FC/APC
  • ASE Output Power
    20 to 30 mW
  • ASE Wavelength
    1120 to 1140 nm
  • Output Type
    CW
  • Center Wavelength
    1120 to 1140 nm
  • Package Type
    Butterfly
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    15 to 20 dB
  • Input Power
    20 dBm
  • Noise Figure :
    10 dB
  • Saturated Output Power
    12 to 15 dBm
  • Forward Voltage
    1.5 to 1.7 V
  • Saturated Output Power
    12 to 15 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    30 to 35 dB
  • Input Power
    20 dBm
  • Operating Current
    600 to 700 mA
  • Note
    SOA reverse voltage: 2 V

Applications

  • Application
    Swept-source, tunable lasers, Booster optical amplifiers, Optical preamplifiers, Optical coherence tomography (OCT)

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining
