SOA-1190-90-YY-20dB

Optical Amplifier by Innolume
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Innolume.

The SOA-1190-90-YY-20dB from Innolume is a Optical Amplifier with Input Power 20 dBm, Noise Figure 6.5 dB, Saturated Output Power 10 to 15 dBm, Saturated Output Power 10 to 15 dBm, Gain 16 to 20 dB. More details for SOA-1190-90-YY-20dB can be seen below.

Product Specifications

Product Details

  • Part Number
    SOA-1190-90-YY-20dB
  • Manufacturer
    Innolume
  • Description

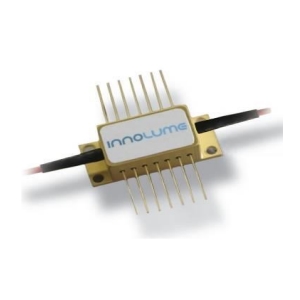

    1180 to 1200 nm Butterfly CW Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    75 to 90 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • ASE Bandwidth
    75 to 90 nm
  • Connectors
    FC/APC
  • ASE Output Power
    0.4 to 0.7 mW
  • ASE Wavelength
    1180 to 1200 nm
  • Output Type
    CW
  • Center Wavelength
    1180 to 1200 nm
  • Package Type
    Butterfly
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    15 to 20 dB
  • Input Power
    20 dBm
  • Noise Figure :
    6.5 dB
  • Saturated Output Power
    10 to 15 dBm
  • Forward Voltage
    1.4 to 1.6 V
  • Saturated Output Power
    10 to 15 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    16 to 20 dB
  • Input Power
    20 dBm
  • Operating Current
    300 to 400 mA
  • Note
    SOA reverse voltage: 2 V

Applications

  • Application
    Swept-source, tunable lasers, Booster optical amplifiers, Optical preamplifiers

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining
