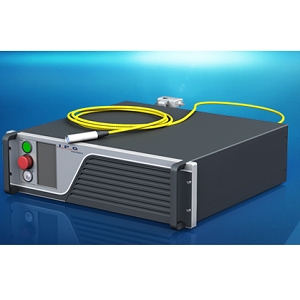

YAM-100-1013-LP-SF

Optical Amplifier by IPG Photonics

Note: Your Quotation Request will be directed to IPG Photonics.

The YAM-100-1013-LP-SF from IPG Photonics is a Optical Amplifier with Input Power 5 to 30 mW, Saturated Output Power 100 mW, Saturated Output Power 100 mW, Input Power 5 to 30 mW, Supply Voltage (DC) 24 VDC. More details for YAM-100-1013-LP-SF can be seen below.

Product Specifications

Product Details

  • Part Number
    YAM-100-1013-LP-SF
  • Manufacturer
    IPG Photonics
  • Description
    Single frequency ytterbium amplifiers

General Parameters

  • Amplifier Type
    Ytterbium-Doped Fiber Amplifier (YDFA)
  • Beam Quality Factor (M2)
    1.06 to <1.15
  • Output Type
    CW
  • Center Wavelength
    1013 nm
  • Package Type
    Benchtop / Rackmount
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    >100:1
  • Cooling
    Water-Cooled
  • Input Power
    5 to 30 mW
  • Saturated Output Power
    100 mW
  • Saturated Output Power
    100 mW
  • Gain Material
    Ytterbium-doped
  • Long Term Stability
    0.5 to 3%
  • Package
    19” rack mount/Benchtop
  • Polarization Dependancy
    Yes
  • Power Consumption
    <500 to 600 W
  • Power Tunability
    1 to 100%
  • Input Power
    5 to 30 mW
  • Supply Voltage (DC)
    24 VDC

Applications

  • Application
    Quantum Control of Rydberg Atom Qubits, Optical Metrology, High Resolution CW Spectroscopy, Holography & Interferometry, Atom Trapping & Optical Tweezers, Biomedical Instrument Integration, CW Mid-IR OPO pumping

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode

Physical Properties

  • Dimension
    332 x 532 x 54 mm
  • Weight
    <14 kg
Click to view more product details on manufacturer's website
