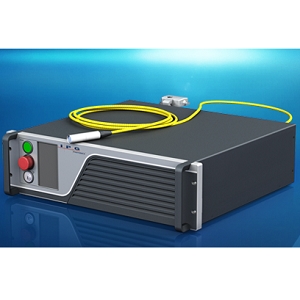

YAR- 5-LP-SF

Optical Amplifier by IPG Photonics
Request Quote

Note: Your Quotation Request will be directed to IPG Photonics.

The YAR- 5-LP-SF from IPG Photonics is a Optical Amplifier with Input Power 1 to 5 mW, Saturated Output Power 5 W, Saturated Output Power 5 W, Input Power 1 to 5 mW, Supply Voltage (AC) 100 to 240 VAC, 50 to 60 Hz single-phase. More details for YAR- 5-LP-SF can be seen below.

Product Specifications

Product Details

  • Part Number
    YAR- 5-LP-SF
  • Manufacturer
    IPG Photonics
  • Description
    Single frequency ytterbium amplifiers

General Parameters

  • Amplifier Type
    Ytterbium-Doped Fiber Amplifier (YDFA)
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Polarization
    Linear
  • Polarization Extinction Ratio :
    >100:1
  • Cooling
    Air-Cooled
  • Input Power
    1 to 5 mW
  • Saturated Output Power
    5 W
  • Saturated Output Power
    5 W
  • Gain Material
    Ytterbium-doped
  • Long Term Stability
    0.5 to 3%
  • Package
    19” rack mount/Benchtop
  • Polarization Dependancy
    Yes
  • Power Consumption
    <185 W
  • Power Tunability
    1 to 100%
  • Input Power
    1 to 5 mW
  • Supply Voltage (AC)
    100 to 240 VAC, 50 to 60 Hz single-phase
  • Wavelength Range
    1030 to 1070 nm

Applications

  • Application
    Quantum Control of Rydberg Atom Qubits, Optical Metrology, High Resolution CW Spectroscopy, Holography & Interferometry, Atom Trapping & Optical Tweezers, Biomedical Instrument Integration, CW Mid-IR OPO pumping

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode

Physical Properties

  • Dimension
    483 x 403 x 133 mm
  • Weight
    21 kg
