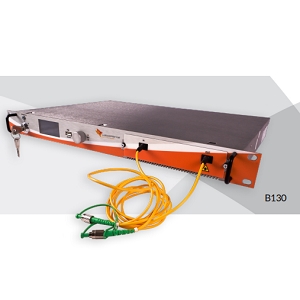

CEFA-C-BD

Optical Amplifier by Keopsys by LUMIBIRD

Note: Your Quotation Request will be directed to Keopsys by LUMIBIRD.

The CEFA-C-BD from Keopsys by LUMIBIRD is a Optical Amplifier with Input Power -50 to -10 dBm, Saturated Output Power Up to 5 dBm, Saturated Output Power Up to 5 dBm, Gain 12 to 21 dB, Input Power -50 to -10 dBm. More details for CEFA-C-BD can be seen below.

Product Specifications

Product Details

  • Part Number
    CEFA-C-BD
  • Manufacturer
    Keopsys by LUMIBIRD
  • Description
    CW Erbium Fiber Amplifier C-band BiDirectional 1 or 2 bidirectional amplifiers in a 1U benchtop

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Bands
    C Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Polarization
    Random
  • Control Mode
    Automatic Current Control (ACC)
  • RoHS
    Yes
  • Input Power
    -50 to -10 dBm
  • Saturated Output Power
    Up to 5 dBm
  • Saturated Output Power
    Up to 5 dBm
  • Gain Material
    Erbium-Doped
  • Interface
    USB, Ethernet, RS232
  • Laser Class
    Class 4
  • Output Power Stability
    <1%
  • Package
    Benchtop, 1U rack
  • Gain
    12 to 21 dB
  • Input Power
    -50 to -10 dBm
  • Wavelength Range
    1540 to 1565 nm

Applications

  • Application
    Two way optical frequency comparisons, Optical reference frequency dissemination, Temporal variation of fundamental constant, Atomic clock comparison, Relativistic geodesy

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode
  • Fiber Type
    SMF28
