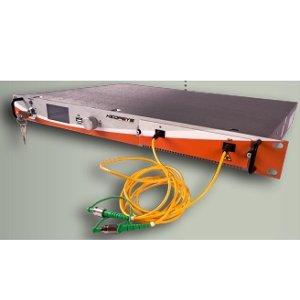

CEFA-L-HG

Optical Amplifier by Keopsys by LUMIBIRD
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Keopsys by LUMIBIRD.

The CEFA-L-HG from Keopsys by LUMIBIRD is a Optical Amplifier with Input Power -40 to 0 dBm, Noise Figure <4.5 to 5.5 dB, Saturated Output Power 20 to 23 dBm, Saturated Output Power 20 to 23 dBm, Input Power -40 to 0 dBm. More details for CEFA-L-HG can be seen below.

Product Specifications

Product Details

  • Part Number
    CEFA-L-HG
  • Manufacturer
    Keopsys by LUMIBIRD
  • Description
    Cw erbium fiber amplifier l-band high gain

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC, SC/APC, FC/UPC, SC/UPC
  • Bands
    L Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount, OEM Module
  • Polarization
    Random, Linear
  • Control Mode
    Automatic Current Control (ACC), Automatic Power Control (APC)
  • Polarization Extinction Ratio :
    >20 dB
  • RoHS
    Yes
  • Input Power
    -40 to 0 dBm
  • Noise Figure :
    <4.5 to 5.5 dB
  • Saturated Output Power
    20 to 23 dBm
  • Saturated Output Power
    20 to 23 dBm
  • Gain Material
    Erbium-Doped
  • Interface
    USB, Ethernet
  • Laser Class
    Class 4
  • Package
    Benchtop, OEM Module
  • Power Tunability
    30 to 100%
  • Small Signal Gain
    >40 to 50 dB
  • Warranty
    1 Year
  • Input Power
    -40 to 0 dBm
  • Wavelength Range
    1570 to 1603 nm

Applications

  • Application
    High sensitivity optical preamplification, Quantum cryptography, Optical metrology, Optical remote sensing, Test and measurement

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode, Polarization Maintaning
  • Fiber Type
    SM, PM
