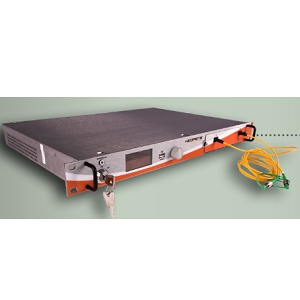

PEFA-EOLA

Optical Amplifier by Keopsys by LUMIBIRD
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Keopsys by LUMIBIRD.

The PEFA-EOLA from Keopsys by LUMIBIRD is a Optical Amplifier with Input Power 16 µW, Output Power Up to 2200 mW, Output Power Up to 2200 mW, Repetition Rate 10 to 20 kHz, Wavelength Range 1543 nm. More details for PEFA-EOLA can be seen below.

Product Specifications

Product Details

  • Part Number
    PEFA-EOLA
  • Manufacturer
    Keopsys by LUMIBIRD
  • Description
    Pulsed erbium 1.5 µm long pulse fiber amplifier

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC, Collimator
  • Beam Quality Factor (M2)
    <1.5
  • Output Type
    Pulsed
  • Package Type
    Benchtop / Rackmount, OEM Module
  • Polarization
    Linear
  • Control Mode
    Automatic Current Control (ACC)
  • RoHS
    Yes
  • Gain Material
    Erbium-Doped
  • Package
    Benchtop, OEM Module
  • Pulse Energy
    Up to 220 µJ
  • Pulse Width
    100 to 800 ns
  • Input Power
    16 µW
  • Output Power
    Up to 2200 mW
  • Output Power :
    Up to 2200 mW
  • Repetition Rate
    10 to 20 kHz
  • Wavelength Range
    1543 nm

Applications

  • Application
    Aerosol detection, Wind monitoring, 2D/3D wind profiler, Weather monitoring, Pollution monitoring, Wind hazard and wake vortices monitoring, Wind farm optimization

Environmental Conditions

  • Operating Temperature
    -35 to 65 Degree C
