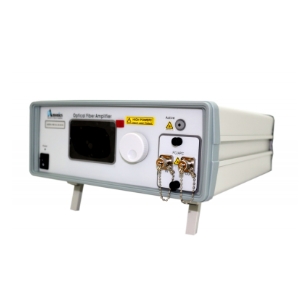

AEDFA-C-EX-DWDM-30

Optical Amplifier by Laser 2000
Request Quote

Note: Your Quotation Request will be directed to Laser 2000.

The AEDFA-C-EX-DWDM-30 from Laser 2000 is a Optical Amplifier with Input Power -6 to 6 dBm, Noise Figure 5.5 to 6 dB, Gain 29 to 30 dB, Input Power -6 to 6 dBm, Output Power 29 to 30 dBm. More details for AEDFA-C-EX-DWDM-30 can be seen below.

Product Specifications

Product Details

  • Part Number
    AEDFA-C-EX-DWDM-30
  • Manufacturer
    Laser 2000
  • Description
    1528 to 1567 nm Benchtop CW Erbium-Doped Fiber Amplifier

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC, FC/UPC, SC/APC, SC/UPC
  • Bands
    C Band, L Band
  • Output Type
    CW
  • Center Wavelength
    1528 to 1567 nm
  • Package Type
    Benchtop / Rackmount
  • Polarization Dependent Gain
    0.3 to 0.5 dB
  • Input Power
    -6 to 6 dBm
  • Noise Figure :
    5.5 to 6 dB
  • Interface
    RS-232
  • Package
    Benchtop
  • Polarization Dependancy
    Yes
  • Gain
    29 to 30 dB
  • Input Power
    -6 to 6 dBm
  • Output Power
    29 to 30 dBm
  • Isolation
    30 dB
  • Output Power :
    29 to 30 dBm

Applications

  • Application
    Optical Communications, DWDM-Applications, Fiber Optics Sensing, Laboratory, Scientific Applications
