AEDFA-IL-18

Optical Amplifier by Laser 2000
Request Quote

Note: Your Quotation Request will be directed to Laser 2000.


Product Specifications

Product Details

  • Part Number
    AEDFA-IL-18
  • Manufacturer
    Laser 2000
  • Description

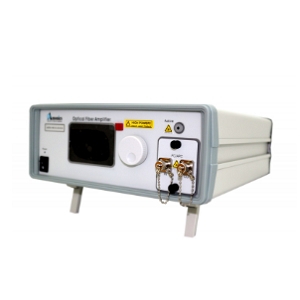

    1530 to 1563 nm Benchtop CW Erbium-Doped Fiber Amplifier

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC, FC/UPC, SC/APC, SC/UPC
  • Output Type
    CW
  • Center Wavelength
    1530 to 1563 nm
  • Package Type
    Benchtop / Rackmount
  • Polarization Dependent Gain
    0.3 to 0.5 dB
  • Noise Figure :
    5 to 5.5 dB
  • Saturated Output Power
    18 dBm
  • Saturated Output Power
    18 dBm
  • Interface
    RS-232
  • Package
    Benchtop
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    0.3 to 0.5 ps
  • Gain
    30 dB (Optical)
  • Isolation
    30 dB

Applications

  • Application
    Optical Communication, Fiber Optic Sensing, Laboratory, Production Test

Fiber Parameters

  • Fiber Mode
    Single Mode
Click to view more product details on manufacturer's website
