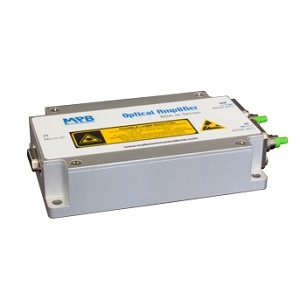

EOA-m Ruggedized PreAmplifier

Optical Amplifier by MPB Communications

Note: Your Quotation Request will be directed to MPB Communications.

The EOA-m Ruggedized PreAmplifier from MPB Communications is a Optical Amplifier with Input Power -50 to -15 dBm, Noise Figure 3.5 to <3.7 dB, Gain 30 dB, 33 dB, 36 dB, 39, 42 dB, Input Power -50 to -15 dBm, Isolation >30 dB. More details for EOA-m Ruggedized PreAmplifier can be seen below.

Product Specifications

Product Details

  • Part Number
    EOA-m Ruggedized PreAmplifier
  • Manufacturer
    MPB Communications

General Parameters

  • Amplifier Type
    Pre-Amplifier
  • Output Type
    CW
  • Package Type
    Module
  • Polarization Dependent Gain
    <0.3 dB
  • Input Power
    -50 to -15 dBm
  • Noise Figure :
    3.5 to <3.7 dB
  • Package
    Module
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    <0.5 ps
  • Power Consumption
    <2.9 W
  • Gain
    30 dB, 33 dB, 36 dB, 39, 42 dB
  • Input Power
    -50 to -15 dBm
  • Isolation
    >30 dB
  • Wavelength Range
    1529 to 1563 nm

Applications

  • Application
    Transmitter and Receiver Amplification, Single Channel and DWDM, Built-in amplification in fiber-optic instruments and sub-systems, High Sensitivity application with low input power ( -50 dBm or less)

Physical Properties

  • Dimension
    78 x 50 x 18 mm (L x W x H)
  • Weight
    <140 g
