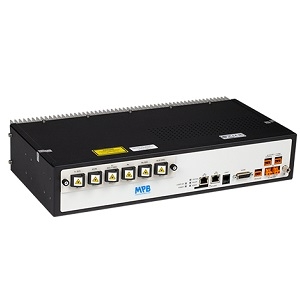

P30F

Optical Amplifier by MPB Communications
Request Quote

Note: Your Quotation Request will be directed to MPB Communications.

The P30F from MPB Communications is a Optical Amplifier with Input Power -13 to 7 dBm, Gain 22 to 24 dB, Input Power -13 to 7 dBm, Output Power 10 to 30 dBm, Output Power 10 to 30 dBm. More details for P30F can be seen below.

Product Specifications

Product Details

  • Part Number
    P30F
  • Manufacturer
    MPB Communications
  • Description
    C- band 2RU Boosters

General Parameters

  • Amplifier Type
    Booster Optical Amplifier (BOA)
  • Connectors
    SC, E-2000-PS
  • Bands
    C-Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Channels
    Single
  • Control Mode
    Automatic Power Control (APC), Automatic Gain Control (AGC)
  • Input Power
    -13 to 7 dBm
  • Interface
    SNMP
  • Output Power Stability
    ± 0.5 dB
  • Package
    2RU
  • Gain
    22 to 24 dB
  • Input Power
    -13 to 7 dBm
  • Output Power
    10 to 30 dBm
  • Output Power :
    10 to 30 dBm
  • Wavelength Range
    1529 to 1569 nm
  • Note
    Gain Adjustable Range: 7.5 to 16 dB, Gain Tilt Range: 6 to 16 dB (Negative)

Applications

  • Application
    WDM applications

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode
  • Fiber Type
    SMF-28
Click to view more product details on manufacturer's website
