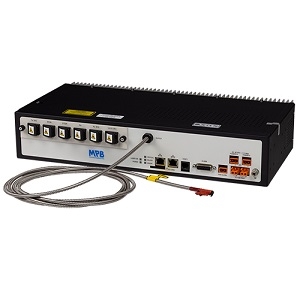

PY30F-S

Optical Amplifier by MPB Communications
Request Quote

Note: Your Quotation Request will be directed to MPB Communications.

The PY30F-S from MPB Communications is a Optical Amplifier with Input Power -9 to 7 dBm, Gain 23 to 25 dB, Input Power -9 to 7 dBm, Output Power 18 to 30 dBm, Output Power 18 to 30 dBm. More details for PY30F-S can be seen below.

Product Specifications

Product Details

  • Part Number
    PY30F-S
  • Manufacturer
    MPB Communications
  • Description
    C-bands, L-bands 2RU Boosters

General Parameters

  • Amplifier Type
    Booster Optical Amplifier (BOA)
  • Connectors
    SC, E-2000-PS
  • Bands
    C-Band, L-Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Channels
    Single
  • Control Mode
    Automatic Power Control (APC), Automatic Gain Control (AGC)
  • Input Power
    -9 to 7 dBm
  • Interface
    SNMP
  • Output Power Stability
    ± 0.5 dB
  • Package
    2RU
  • Gain
    23 to 25 dB
  • Input Power
    -9 to 7 dBm
  • Output Power
    18 to 30 dBm
  • Output Power :
    18 to 30 dBm
  • Wavelength Range
    1536 to 1568 nm
  • Note
    Gain Tilt Range: 5 to 15 dB (Negative)

Applications

  • Application
    WDM applications

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode
  • Fiber Type
    SMF-28
