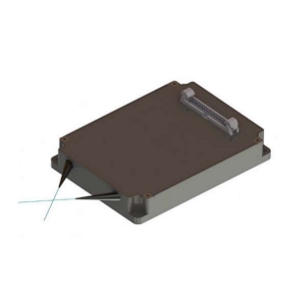

EDFA-CW-C0-SMR-30-30-FCA

Optical Amplifier by Nuphoton Technologies, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Nuphoton Technologies, Inc..

The EDFA-CW-C0-SMR-30-30-FCA from Nuphoton Technologies, Inc. is a Optical Amplifier with Input Power -10 to 10 dBm (Input Power Monitoring Range), Noise Figure <7.5 dB, Gain 30 dB, Input Power -10 to 10 dBm (Input Power Monitoring Range), Output Power 30 dBm. More details for EDFA-CW-C0-SMR-30-30-FCA can be seen below.

Product Specifications

Product Details

  • Part Number
    EDFA-CW-C0-SMR-30-30-FCA
  • Manufacturer
    Nuphoton Technologies, Inc.
  • Description
    1535 to 1565 nm Module Pigtailed, Benchtop CW Erbium-Doped Fiber Amplifier

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Bands
    C Band
  • Output Type
    CW
  • Center Wavelength
    1535 to 1565 nm
  • Package Type
    Pigtailed Module, Benchtop / Rackmount
  • Control Mode
    Constant Power Control (CPC), Constant Current Control (CCC)
  • Input Power
    -10 to 10 dBm (Input Power Monitoring Range)
  • Noise Figure :
    <7.5 dB
  • Interface
    RS-232, LVTTL
  • Package
    Module Pigtailed, Benchtop
  • Gain
    30 dB
  • Input Power
    -10 to 10 dBm (Input Power Monitoring Range)
  • Output Power
    30 dBm
  • Output Power :
    30 dBm
  • Supply Voltage (DC)
    12 V
  • Note
    Measurement Accuracy: <±0.5 dB, Output Power Monitoring Range: 13 to 31 dBm

Environmental Conditions

  • Operating Temperature
    0 to 65 Degree C

Fiber Parameters

  • Fiber diameter
    900 µm
  • Fiber Mode
    Single Mode
  • Fiber Length
    1 m

Physical Properties

  • Dimension
    100 x 75 x 15 mm
