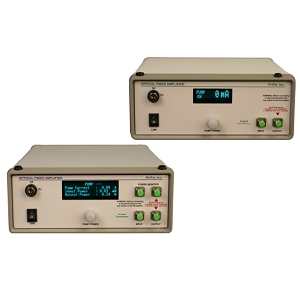

FA-27

Optical Amplifier by PriTel, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PriTel, Inc..

The FA-27 from PriTel, Inc. is a Optical Amplifier with Input Power -10 to 20 dBm, Noise Figure <8 dB, Saturated Output Power 27 dBm, Saturated Output Power 27 dBm, Input Power -10 to 20 dBm. More details for FA-27 can be seen below.

Product Specifications

Product Details

  • Part Number
    FA-27
  • Manufacturer
    PriTel, Inc.
  • Description
    Solid-state pumped erbium-ytterbium co-doped optical fiber amplifier

General Parameters

  • Amplifier Type
    Ytterbium-Doped Fiber Amplifier (YDFA), Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Gain Flatness :
    0.5 dB
  • Output Type
    Pulse
  • Package Type
    Benchtop / Rackmount
  • Channels
    Single
  • Polarization Sensitivity
    <0.2 dB
  • Input Power
    -10 to 20 dBm
  • Noise Figure :
    <8 dB
  • Saturated Output Power
    27 dBm
  • Saturated Output Power
    27 dBm
  • Gain Material
    Erbium-Doped, Ytterbium-doped
  • Interface
    RS-232, USB, GPIB and Ethernet
  • Package
    Benchtop
  • Polarization Dependancy
    Yes
  • Power Consumption
    <125 W
  • Pulse Width
    1.5 ps
  • Pump Wavelength
    910 to 980 nm
  • Small Signal Gain
    >27 dB
  • Input Power
    -10 to 20 dBm
  • Supply Voltage (AC)
    85 to 264 VAC at 47 to 63 Hz
  • Wavelength Range
    1535 to 1565 nm

Applications

  • Application
    R&D applications in CATV, telecommunications, fiber lasers, and optical switching

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -20 to 50 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    10 x 26 x 36 cm
  • Weight
    8 kg
