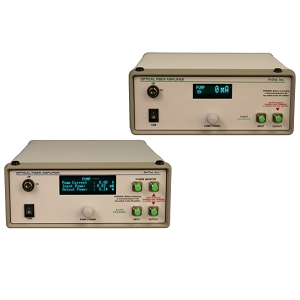

FA-L-18

Optical Amplifier by PriTel, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PriTel, Inc..


Product Specifications

Product Details

  • Part Number
    FA-L-18
  • Manufacturer
    PriTel, Inc.
  • Description
    L-band optical fiber amplifiers

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Bands
    L-Band
  • Gain Flatness :
    1 dB
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Channels
    Single
  • Polarization Sensitivity
    <0.2 dB
  • Input Power
    -30 to 10 dBm
  • Noise Figure :
    <6.5 dB
  • Saturated Output Power
    18 dBm
  • Saturated Output Power
    18 dBm
  • Gain Material
    Erbium-Doped
  • Interface
    RS-232, USB, GPIB and Ethernet
  • Package
    Benchtop
  • Polarization Dependancy
    Yes
  • Power Consumption
    <125 W
  • Pump Wavelength
    980 nm
  • Small Signal Gain
    14 to 34 dB
  • Input Power
    -30 to 10 dBm
  • Supply Voltage (AC)
    85 to 264 VAC at 47 to 63 Hz
  • Wavelength Range
    1565 to 1615 nm

Applications

  • Application
    R&D applications in CATV, telecommunications, fiber lasers, and optical switching.

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -20 to 50 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    10 x 26 x 28 cm
