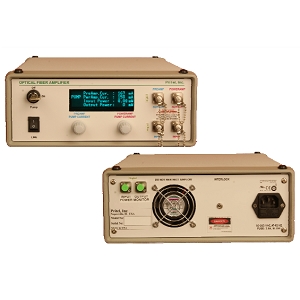

LNHP-PMFA-23

Optical Amplifier by PriTel, Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PriTel, Inc..

The LNHP-PMFA-23 from PriTel, Inc. is a Optical Amplifier with Input Power -40 to 20 dBm, Noise Figure <3.0 dB, Saturated Output Power 23 dBm, Saturated Output Power 23 dBm, Input Power -40 to 20 dBm. More details for LNHP-PMFA-23 can be seen below.

Product Specifications

Product Details

  • Part Number
    LNHP-PMFA-23
  • Manufacturer
    PriTel, Inc.
  • Description
    Low noise, high powerpolarization maintaining optical fiber amplifiers

General Parameters

  • Amplifier Type
    Pre-Amplifier, Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Bands
    C-Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Control Mode
    Automatic Current Control (ACC), Automatic Power Control (APC), Automatic Level Control (ALC)
  • Input Power
    -40 to 20 dBm
  • Noise Figure :
    <3.0 dB
  • Saturated Output Power
    23 dBm
  • Saturated Output Power
    23 dBm
  • Gain Material
    Erbium-Doped
  • Package
    Benchtop
  • Power Consumption
    <50 W
  • Pump Wavelength
    980 nm
  • Small Signal Gain
    >45 dB
  • Input Power
    -40 to 20 dBm
  • Supply Voltage (AC)
    85 to 264 VAC at 47 to 63 Hz
  • Wavelength Range
    1527 to 1565 nm

Applications

  • Application
    R&D applications in 1550 nm telecommunications, fiber lasers and optical switching

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C
  • Storage Temperature
    -20 to 50 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    10 x 26 x 28 cm
